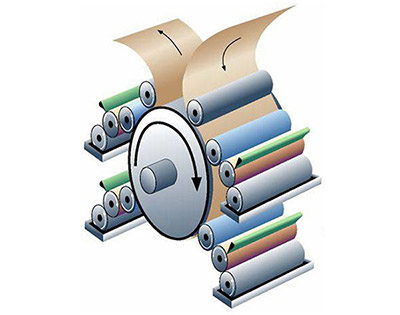

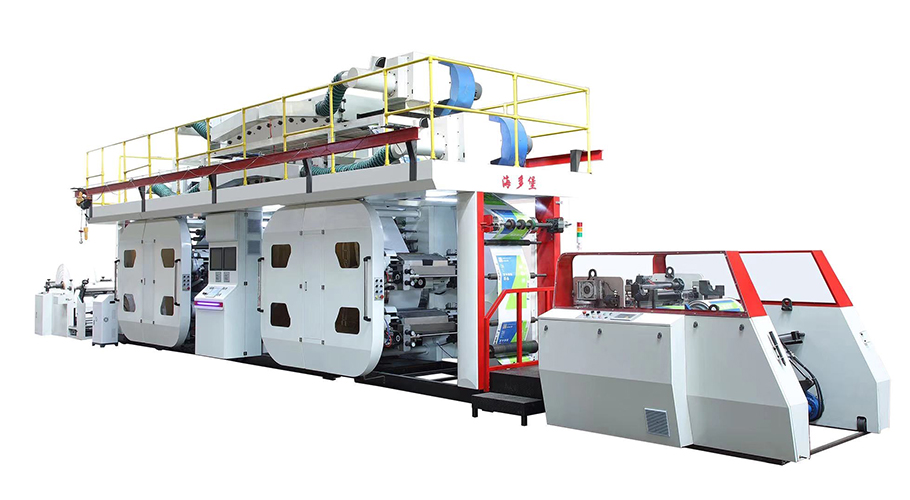

The satellite type printing machine is composed of four color groups around the center, a super large pressure roller structure.
Purpose:
Used for high-precision and high-speed printing of paper, film, OPP, non-woven fabric, plastic woven fabric, paper-plastic composite coil, double-station non-stop winding, automatic servo flying knife cutting cloth, safe and fast.
Equipment performance and features:
●Automatic deviation correction, constant tension control, material cut off, digital display coil diameter and refueling warning.
●No downtime refueling, speed reduction within 100 meters automatic servo cutting cloth double station swing arm exchange.
●The base and thickened wall panels are cast iron materials to ensure the machine runs at high speed and stability.
●The driving force of the printing system is servo synchronous drive, and the low torsion foot accelerates steadily, and the machine stops and does not waste.
●Ceramic anilox rolls, single knife reverse ink scraper, automatic ink supply.
●Closed high speed circulation air knife oven, patented product guarantees drying.
●8 inch winding and expanding shaft for easy matching with square bottom valve pocket production equipment.
●Low noise and high standard safety protection design, beautiful atmosphere equipment, high input, light maintenance, high efficiency.
●High accuracy, fast speed and good efficiency.
Technical parameters:
Maximum printing width |
650mm |
Printing length |
600-1200mm |
Registering precision |
±0.2mm |
Printing color number |
8 colors (4 front and 4 back) |
Winding and unwinding diameter |
≤1400mm |
Printing speed |
120-160m/min |
Main motor power |
7.5kw |
Outline dimensions |
17000×2900×3900mm |
Configuration list:
Servo motor |
Delta |
PLC |
Delta |
Touch screen |
Weinview |
Low voltage electric appliance |
Schneider |
Switching power supply |
Mean Well |
Bearing |
Zhejiang Renben |
Wallboard material |
Cast iron |
